Instruments - Measuring, Monitoring, Controlling and Logging

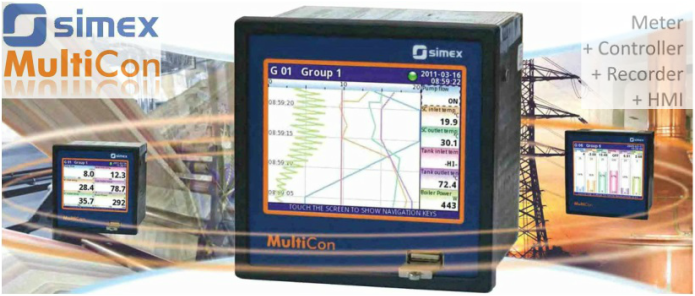

FireMark presents the All-in-One Solution

Colour Touchscreen
3.5" or 5.7" Touchscreen Colour LCD
Small Size!
Small! 3.5" Display - 96mm x 96mm x 100mm 5.7" Display - 144mm x 144mm x 100mm
Modular
Modular Design Allows Customizable Inputs, Outputs and Communications*
Modbus TCP
Modbus RTU Slave and/or Master status in up to 3 networks, Advanced Visualization using JAVA applets through Modbus TCP
Recroder
Advanced and powerful datalogging capabilities - 1.5GB internal memory + USB storage support
Controller
PID control, timer profiles, a range of relay outputs and Modbus RTU

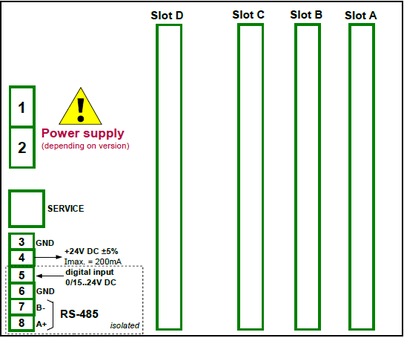

*Highly Modular design -
  • Put any I/O card in Slot A, B, C.
  • Up to 72x 0-20mA inputs on 1 controller!

3.5" Display Version

Choose any 3 of the following I/O modules...
  • 16x 0-20mA Current Input
  • 6x Isolated Current Input
  • 16x mV Voltage Input
  • 4/8 Voltage + 4/8 Current
  • 4x RTD Inputs
  • 4/8x TC Inputs
  • 3x Universal Inputs
  • 8/16x Digital Inputs
  • 2/4x Pulse Input/Universal Counters
  • 2/4x Hourmeters
  • 2/4x Pulse + 2/4x Current
  • 2/4x Flow/Rate Meter Current + 2/4x Current
  • 8x SPST 1A Relay
  • 4x SPDT 5A Relay
  • 8/16x SSR Driver Output
  • 2/4x Isolated 4-20mA output
...and 1 of the following communication modules:
  • ETU Module - 1x USB Host, 1x 10mB Ethernet
  • ATM Module - 1x RS-485, 1x RS-485/232, 1x USB Host, 1x 10mB Ethernet
  • USB port (back)

5.7" Display Version

Choose any 3 of the following I/O modules...
  • 16/24x 0-20mA Current Input
  • 6x Isolated Current Input
  • 16/24x mV Voltage Input
  • 4/8/12 Voltage + 4/8/12 Current
  • 4/6x RTD Inputs
  • 4/8/12x TC Inputs
  • 3/5x Universal Inputs
  • 8/16/24x Digital Inputs
  • 2/4x Pulse Input/Universal Counters
  • 2/4x Hourmeters
  • 2/4x Pulse + 2/4x Current
  • 2/4x Flow/Rate meter Current + 2/4x Current
  • 8/12x SPST 1A Relay
  • 4/6x SPDT 5A Relay
  • 8/16/24x SSR Driver Output
  • 2/4/6/8x Isolated 4-20mA output
...and 1 of the following communication modules:
  • ETU Module - 1x USB Host, 1x 10mB Ethernet
  • ATM Module - 1x RS-485, 1x RS-485/232, 1x USB Host, 1x 10mB Ethernet
  • USB port (back)
